IzoWall MWF-U/MWF-F

sandwich panel with MWF light-weight core | | sandwich panel with MWF light-weight core | sandwich panel with MWF light-weight core

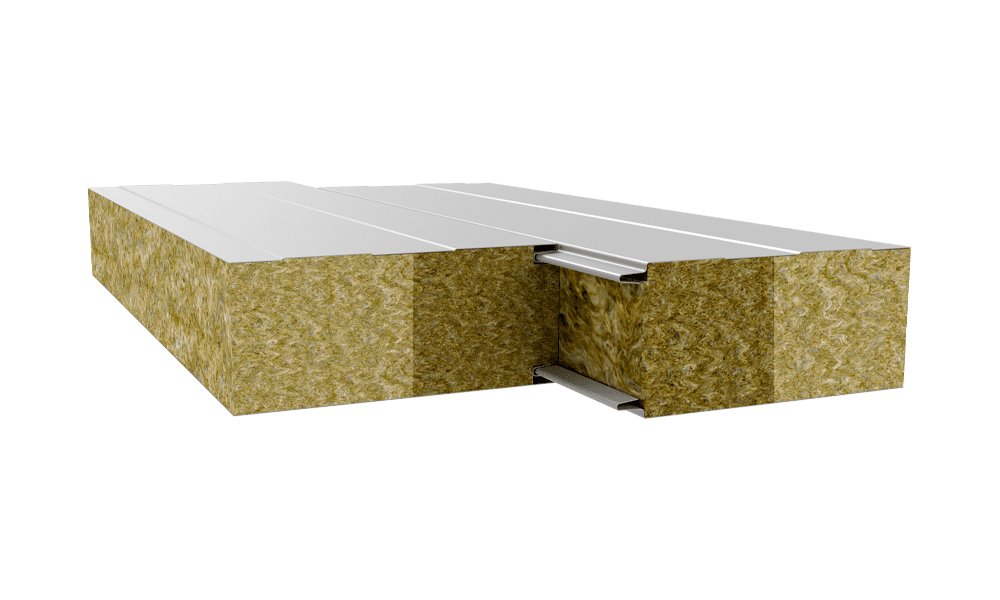

Wall sandwich panel with wool core

IzoWall MWF-U/MWF-F

Tight
Quick to install
Energy efficient
Aesthetic

IzoWall MWF-U/MWF-F composite panels use innovative technology based on ionisation to increase adhesion between the core and cladding, two core densities (80 kg/m³ and 110 kg/m³), increased number of lamellas (11 pcs) with reduced width (approx. 100 mm), increased contact pitch (up to 200 mm) and horizontal cutting direction.

Production is carried out in three integrated modules, which are necessary for the manufacture of innovative lightweight panels with a mineral wool core.

The panels are characterised by exceptional aesthetics thanks to the profiled facings, durability ensured by large bending radii, high fire resistance thanks to the double lock, excellent thermal insulation and the highest safety standards thanks to the non-combustible mineral wool core with two densities.

The proprietary cutting method enables the production of hybrid panels (wool/ polystyrene), utilises the high compressive strength of the wool in the longitudinal direction, ensures better flatness of the core, less waste and a higher final product quality due to the spreading of the lamellae at an angle of approximately 3°.

PRODUCT PROPERTIES | IzoWall MWF-U/MWF-F

Find out what distinguishes IzoWall MWF-U/MWF-F

1. profiled cladding with exceptional surface aesthetics.
2. large bending radii to ensure durability of cladding protective coatings.
3. double lock connecting the panels to guarantee the best fire performance.
4. profiled edges for easy installation and adequate thermal insulation.
5 A core of hard, non-combustible mineral wool (MWF). The boards use a core consisting of two mineral wool densities, i.e. 80 kg/m3 and 110 kg/m3.

Profiling

Thanks to the variety of profiles of the Izopanel panel facings and the wide availability of paint coatings in a wide range of colours, our products are suitable for
the unique character of any building.
ATTENTION! In the BP type profiling (no profiling), a slight undulation of the surface is possible; the value of the permissible deviation from flatness is defined by the PN-EN 14509:2013 standard.

linear profiling

microprofiling

no profiling

Colours

Group I
RAL 1015
RAL 7035
RAL 9002
RAL 9010
Group II
RAL 1002
RAL 6011
RAL 7040
RAL 7047
RAL 9006
Group III
RAL 3000
RAL 3011
RAL 5010
RAL 8004
RAL 9007
RAL 6005
RAL 7016
RAL 7024
RAL 8017
INOX 1.43
The colours presented above are for illustrative purposes only. Izopanel reserves the right for colour differences between the presented and actual colours.
Widths relating to maximum lengths for the specified colour groups are described in the Izopanel Technical Catalogue. Please ask Customer Service for colour availability.
